IP65 LED Water Proof Fixture
FEATURE
a. compact and beautiful,integrated light design,slim,slide groove,flexible installed
b. AT-UV outside PC,safe and reliable;fast installed,fix on any position.
c. extrusion forming,waterproof IP65,IK06,keep protect.
d. energy-efficient, more than 30,000 hours
Body
1. extrusion type.
2. PC safty msterial
3. metal sheet reflector plat,better heat dissipating
4. IP65,outstanding stability of water tight gasket,waterproof,explosion proof,dustproof.
Electrical
1. Operating voltage:85~265V AC,50/60Hz
2. Pvc material sheet,slim and light.
3. SMD 2835 0.2W LED Chips
4 . Certificate:CE,RoHS,EMC
Parameter
Input Voltage:85~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS48EB-120 | LampPower(W) | 48 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 240 | Luminous Flux(lm) | 4800 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - +50 |
| Lamp length(mm) | 4FT-1200 | Package (pcs/ctn) | 8 | Meas(mm) | 1225*210*352 |

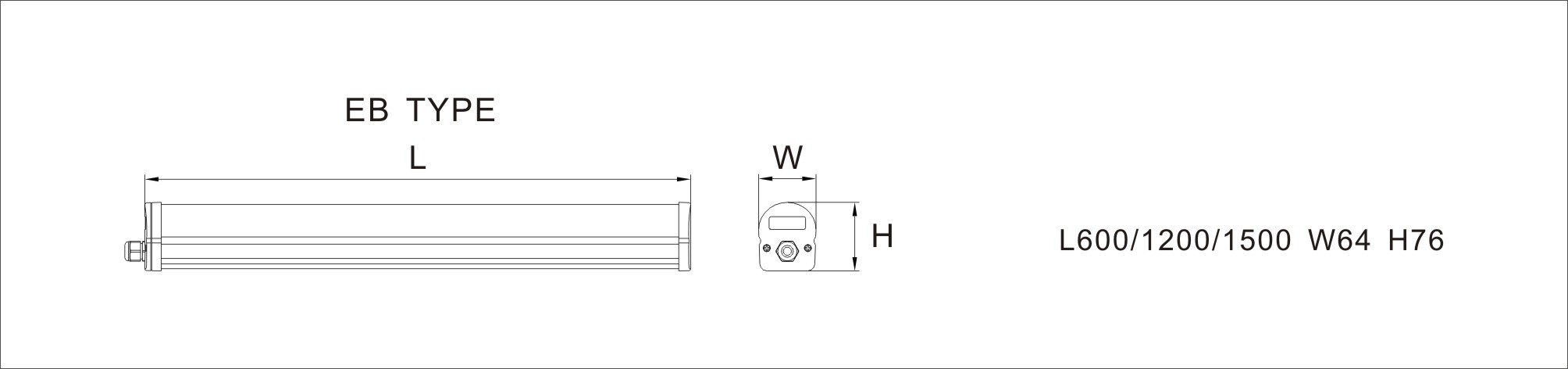

SURFACE

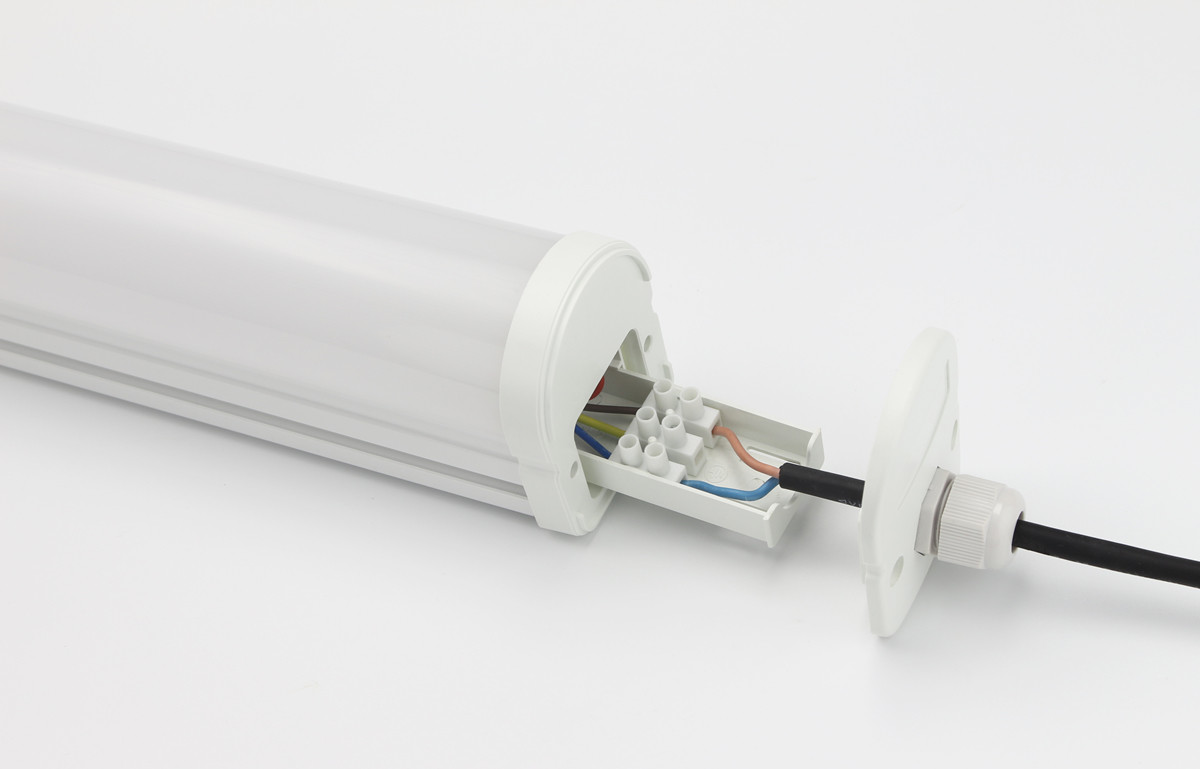

Installation

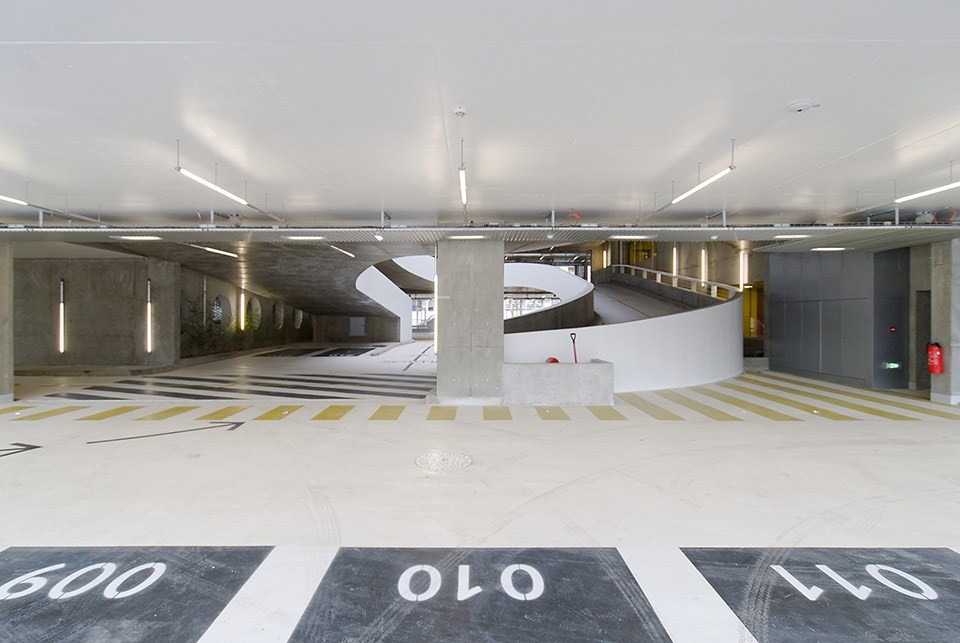

Application Places:
Supermarket,subway,hospital,ware house,under-bridge,tunnel and so on
Company website: www.vision-lighting.cn
FAQ
1. When can I get your reply?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost .But the sample cost can be refundable after order confirmation when your quantity of is more about the minimum order quantity.
2.What about the warranty?
The guarantee period would be 3 years counting from the date when you receive them.
4. Can you do the customization for us?
Yes. We have professional electrical engineer team. Just tell us your requirement and we will help to finish your real samples. We can do the product with your own logo on the inner case label, box label and catorn label.
5. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-10 days.Then will be sent to you via express and arrive in 5 days. You can use your own express account or prepay us if you do not have an account.
Product Tags:
|
|
Natural White LED Batten Light,extrusion mix material case,SMD 2835 0.2W LED Chips Images
|
