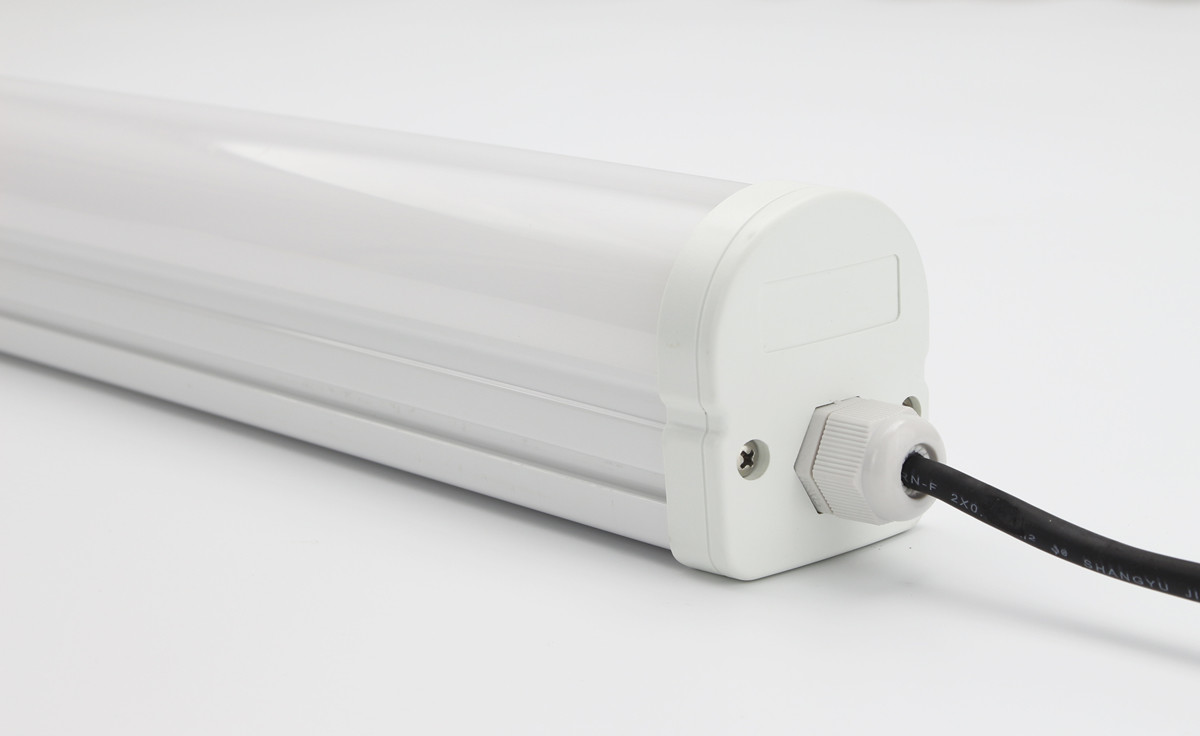

IP65 LED Water Proof Fixture
LED waterproof fixture, refer to waterproof,dustproof and corrodeproof.apply to these places where required the above,like parking lots,basement,supermarket,tunnel,etc.
Parameter
Input Voltage:80~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS48EB-120 | LampPower(W) | 48 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 240 | Luminous Flux(lm) | 4800 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - +50 |
| Lamp length(mm) | 4FT-1200 | Package (pcs/ctn) | 8 | Meas(mm) | 1225*140*352 |
Body
1. Double color extrusion.
2. Opaque UV stabilized PC body
3. PC safty material
4. Alum sheet reflector ensures optional recovery of the light output.
5. PC diffuser,shock-resistant,light uniformity,no dark space.
Electrical
1. Operating voltage:85~265V AC,50/60Hz
2. SMD 2835 0.2W LED Chips,Chinese brand
3. Wattage:24/36/48/60w
4. Warranty: 3 years
9. Certificate:CE,EMC,LVD
SURFACE

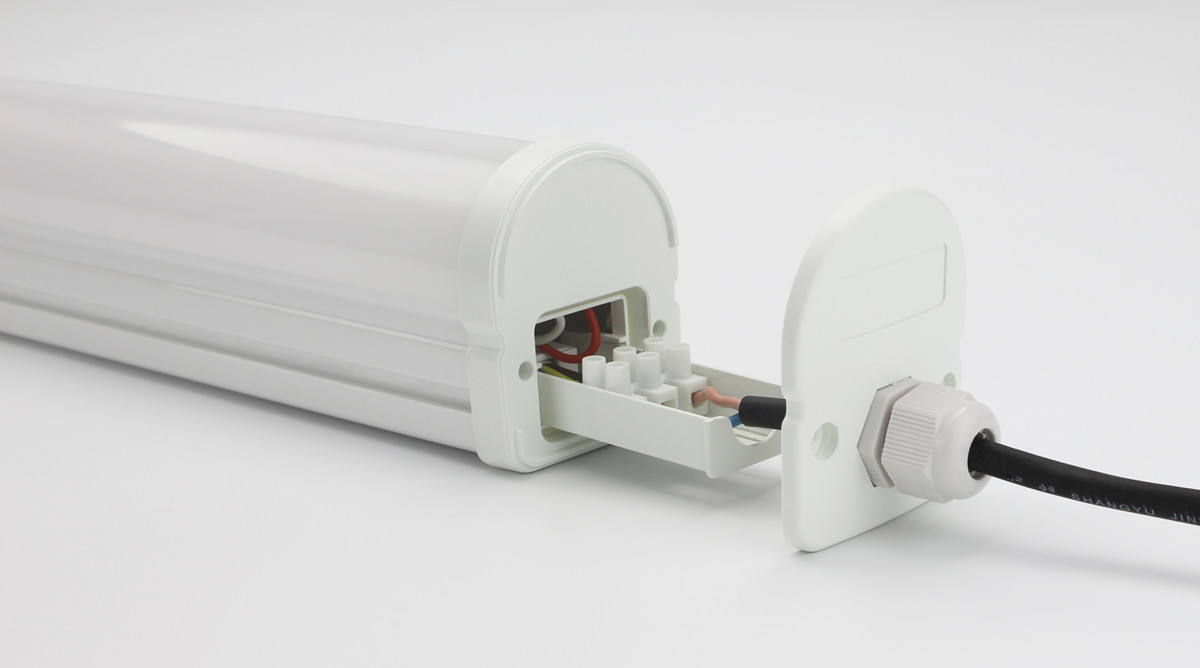

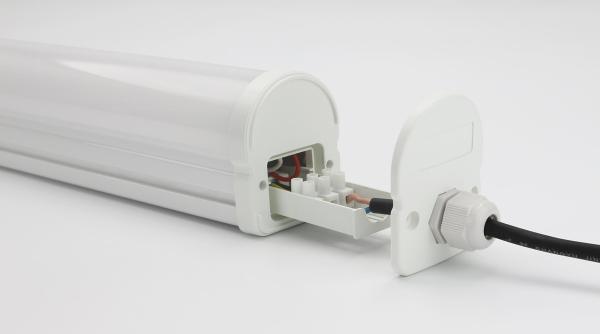

Installation

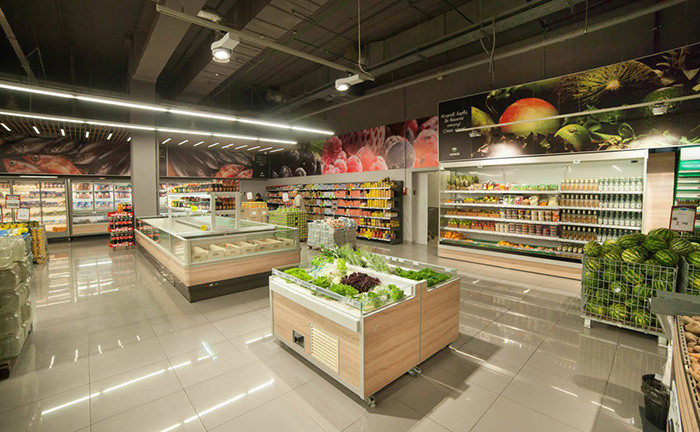

Application Places:
Factories,supermarket,food industries,packing areas and so on
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
www.vision-lighting.cn
Product Tags:
|
|
IP65 LED Batten Light cool design,white mix gray PC body,fast install supermarket Images
|
